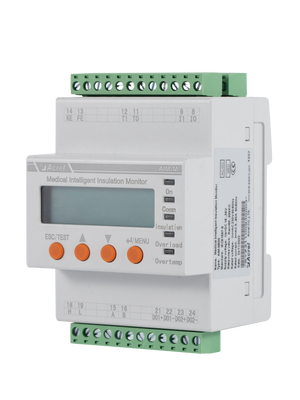

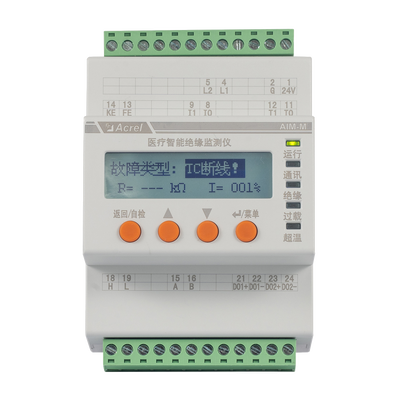

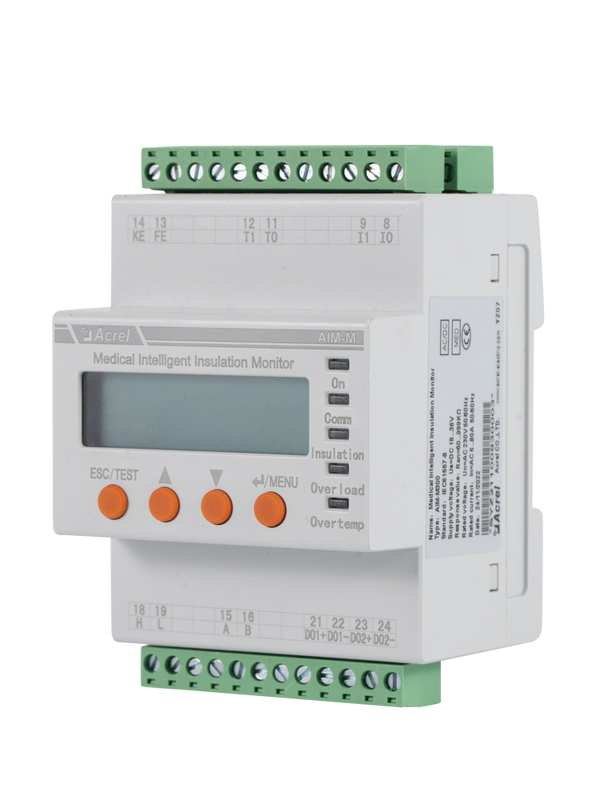

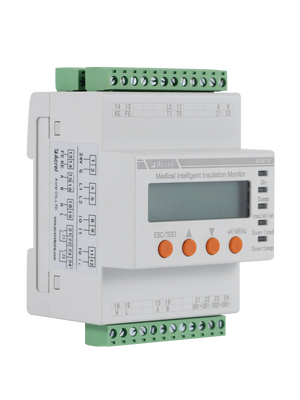

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
اکنون تماس بگیرید

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room

مقدار حداقل تعداد سفارش : 1 قیمت : 1714 USD/unit
جزئیات بسته بندی : بسته بندی کارتن 33*24*18 سانتی متر زمان تحویل : 7 روز کاری
شرایط پرداخت : T/T قابلیت ارائه : 100 عدد در روز
محل منبع: جیانگ سو نام تجاری: Acrel
گواهی: CE/ IEC/ DIN EN 61577-8 شماره مدل: AIM-M300

اطلاعات تکمیلی
شاخص های LED: روشن، عایق، اضافه بار، بیش از حد برنامه: نظارت بر عایق برای سیستم های فناوری اطلاعات پزشکی
ارتباط: RS485 (MODBUS-RTU) + CAN

توضیحات محصول

The AIM-M300 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M300 is designed to support insulation fault location.AIM-M300 series medical intelligent monitoring device adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.

Basic Specification:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 0

Dimension:

                                                      Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 1

Diagram:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 2Function:

1. Functions of real-time monitoring and fault alarming of the grounding insulation resistance,transformer load current and transformer winding temperature of the monitored IT system;
2. Locating current injector for insulation fault location systems;
3. Real-time monitor the line disconnection fault, current sensor disconnectiobn,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
4. Relay alarm output, LED alarm indication and other faults indication functions;
5. Two kinds of fieldbus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.
6. Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.
