خانه محصولاتترانسفورماتور جریان اصلی تقسیم شده استAKH-0.66/K-Series Current Transformer

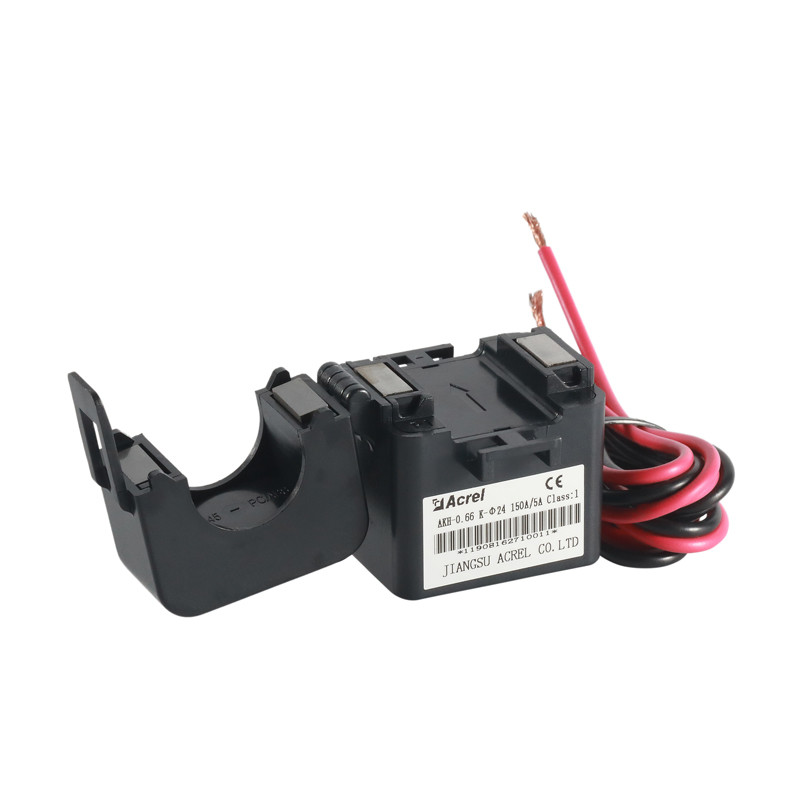

AKH-0.66/K-Series Current Transformer
AKH-0.66/K-Series Current Transformer
اکنون تماس بگیرید

AKH-0.66/K-Series Current Transformer

مقدار حداقل تعداد سفارش : 1 قطعه قیمت : $11.00 / Piece
محل منبع: جیانگ سو ، چین نام تجاری: Acrel
گواهی: ISO9001 /CE شماره مدل: AKH-0.66 / K

اطلاعات تکمیلی
طریقه استفاده: جاری فاز: سه
ساختار کویل: توروئیدی شماره کویل: ترانسفورماتور
نام محصول: ترانسفورماتور جریان AKH-0.66 / K-Series فرکانس رتبه بندی شده: 50 / 60Hz
عامل امنیتی: FS <5 ولتاژ تست: 3 کیلو ولت AC (1 دقیقه)
حداکثر ولتاژ سیستم: 720 ولت AC جریان دینامیکی دارای امتیاز: Idyn = 2.5Ith
اضافه بار مداوم: 120٪ داخل سطح حفاظت: IP30
دمای کارکرد: -25 ℃ - + 50 واحد فروش: مورد واحد
اندازه بسته: 10X5X5 سانتی متر وزن ناخالص: 0.400 کیلوگرم
نوع بسته بندی: در یک کیسه تصادف بسته بندی می شود و سپس در یک جعبه مقوایی قرار می گیرد.

توضیحات محصول

AKH-0.66/K-Series Current Transformer 0
AKH-0.66/K-Series Current Transformer 2



General
Current Transformer (CT) is used to transform the high AC current to samll easily manageable values. They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipments.
Technical Parameters
item

Value


Place of Origin

China


Brand Name

Acrel


Model Number

AKH-0.66/K


Usage

Current


Phase

Three


Coil Structure

TOROIDAL


Coil Number

AUTOTRANSFORMER


Product name

AKH-0.66/K Series Current Transformer


Certification

CE,ISO9001


Rated frequency

50/60Hz


Security factor

FS<5


Continuous overload

120%In


Environment Operating temperature

-25℃-+50℃


Test voltage

3kV AC(1min)


Maximum system voltage

720V AC


Rated short-time thermal current

Ith=40~60In


Protection level

IP30


AKH-0.66/K-Series Current Transformer 3
AKH-0.66/K-Φ Series Current Transformer
General
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.


Standards
IEC/EN61869-1, IEC/EN61869-2
Characteristic
AKH-0.66/K-Series Current Transformer 4





● Security factor: FS＜5
● Maximum system voltage: 720V AC
● Test voltage: 3kV AC(1min)

AKH-0.66/K-Series Current Transformer 5




● Rated frequency: 50/60Hz
● Rated short-time thermal current: Ith=40~60In
● Rated dynamic current: Idyn=2.5Ith
● Rated secondary current: X/5A (X/1A upon request)
● Rated primary current: Ranging up to 6000A
AKH-0.66/K-Series Current Transformer 6





● Continuous overload: 120%In
● Protection level: IP30
● Casing: Non-flammable, polycarbonate self-extinguishing ABS
● Environment:
Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH

Specifications
AKH-0.66/K-Series Current Transformer 7
Appearance
AKH-0.66/K-Series Current Transformer 8
AKH-0.66/K-Series Current Transformer 9
AKH-0.66/K-Series Current Transformer 10
AKH-0.66/K-Series Current Transformer 11
AKH-0.66/K-Series Current Transformer 12
AKH-0.66/K-Series Current Transformer 13
AKH-0.66/K-Series Current Transformer 14
AKH-0.66/K-Series Current Transformer 15
After-sales Service
AKH-0.66/K-Series Current Transformer 16
AKH-0.66/K-Series Current Transformer 17
Company Profile
AKH-0.66/K-Series Current Transformer 18
Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets. Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
AKH-0.66/K-Series Current Transformer 19
AKH-0.66/K-Series Current Transformer 20
AKH-0.66/K-Series Current Transformer 21
AKH-0.66/K-Series Current Transformer 22
Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd.
baojingjun@email.acrel.cn
Address:No.5,Dongmeng Road,Nanzha Town,Jiangyin City,Jiangsu Province.
AKH-0.66/K-Series Current Transformer 23
AKH-0.66/K-Series Current Transformer 24
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.


2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more


3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.


4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.


5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
