BA10-AI/V Current Transducer
BA10-AI/V Current Transducer BA10-AI/V Current Transducer BA10-AI/V Current Transducer BA10-AI/V Current Transducer
اکنون تماس بگیرید

BA10-AI/V Current Transducer

مقدار حداقل تعداد سفارش : 1 قطعه قیمت : $35.00 / Piece
محل منبع: جیانگ سو ، چین نام تجاری: Acrel
گواهی: ISO CE شماره مدل: BA10-AI / V

اطلاعات تکمیلی
طریقه استفاده: قدرت فاز: تنها
ساختار کویل: توروئیدی شماره کویل: ترانسفورماتور
نام محصول: مبدل جریان BA10-AI / V کلاس دقت: 0.5٪
زمان پاسخ: 50350 میلی متر نصب و راه اندازی: ریل دین 35 میلی متر
مصرف: W1W جریان ورودی: AC 0-50A
اندازه سوراخ: قطر 10 میلی متر دمای عملیات: -10 ~ 55
استاندارد: GB / T13850 واحد فروش: مورد واحد
اندازه بسته: 7.6X7.4X2.25 سانتی متر وزن ناخالص: 0.400 کیلوگرم
نوع بسته بندی: این در یک کیسه تصادف بسته بندی می شود و سپس در یک جعبه مقوایی قرار می گیرد. اگر بسته بندی شرایط خاصی

توضیحات محصول

BA10-AI/V Current Transducer 0
BA10-AI/V Current Transducer 1

BA10-AI/V Current Transducer
Measurement
- Direct AC current measurement up to 600A
- Overload: 1.2 times of rated value Application
- Industrial automation

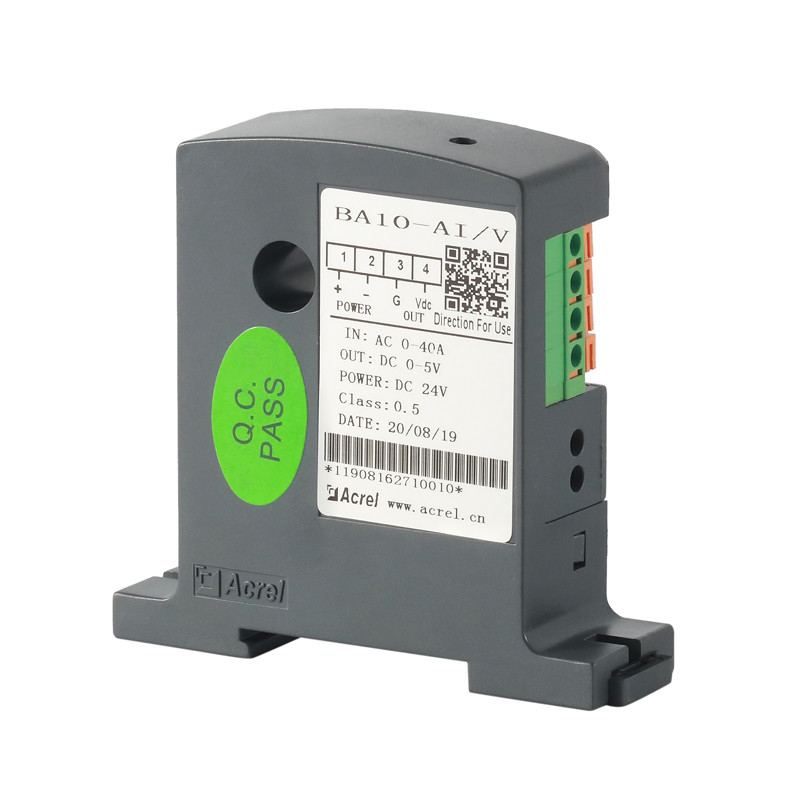

Appearance
BA10-AI/V Current Transducer 2
BA10-AI/V Current Transducer 3
BA10-AI/V Current Transducer 4
Technical Parameters

Auxiliary Power

DC12V



DC24V

Consumption

≤1W

Through-hole size

φ10mm

Input
Current
AC0~(8~50)A


Output
Nominal value
DC4-20mA,or0-20mA,0-5V,0-10V,etc


Load resistance
Current output≤500Ω,Voltage output≥1kΩ

Accuracy Class

0.5%

Response time

≤350ms

Temperature

Operation:-10 to+55℃  Storage:-25 to 70℃

Temperature coefficient

≤200ppm/℃

Installation

(Rail)Din 35,fix on cubicle with screws

Standards

GB/T13850

After-sales Service
BA10-AI/V Current Transducer 5
Company Profile

Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer
enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test
center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and
reliability.
The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets. Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with the energy efficiency management and power security system solutions.
Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
BA10-AI/V Current Transducer 6
BA10-AI/V Current Transducer 7
BA10-AI/V Current Transducer 8
BA10-AI/V Current Transducer 9
Certifications
BA10-AI/V Current Transducer 10
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Domestic Market(90.00%),Southeast Asia(2.00%),South Asia(1.00%),South
America(1.00%),Northern Europe(1.00%),Central America(1.00%),Eastern Asia(1.00%),Mid East(1.00%),Africa(1.00%),North
America(1.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
AKH-0.66 Series Measurement Current Transformer,Programmable Intelligent Electric Meters,DDS Series Din Rail Energy Meter,AMC16Z
Series Data Center Monitor Device,Medical IT System Insulation Monitoring and Fault Location Device

4. why should you buy from us not from other suppliers?
Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City. The annual capacity of the
electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Portuguese
